ELITE NEW ENERGY MAKES GREENER LIFE
5 Years
| Ask Lasest Price | |
| Brand Name : | Elite Battery |
| Model Number : | 12V 10Ah |
| Certification : | CE, UL, MSDS, UN38.3, MSDS |
| Price : | $1.99-39.99/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability : | 10000 PCS/Month |
| Delivery Time : | 30 Days |

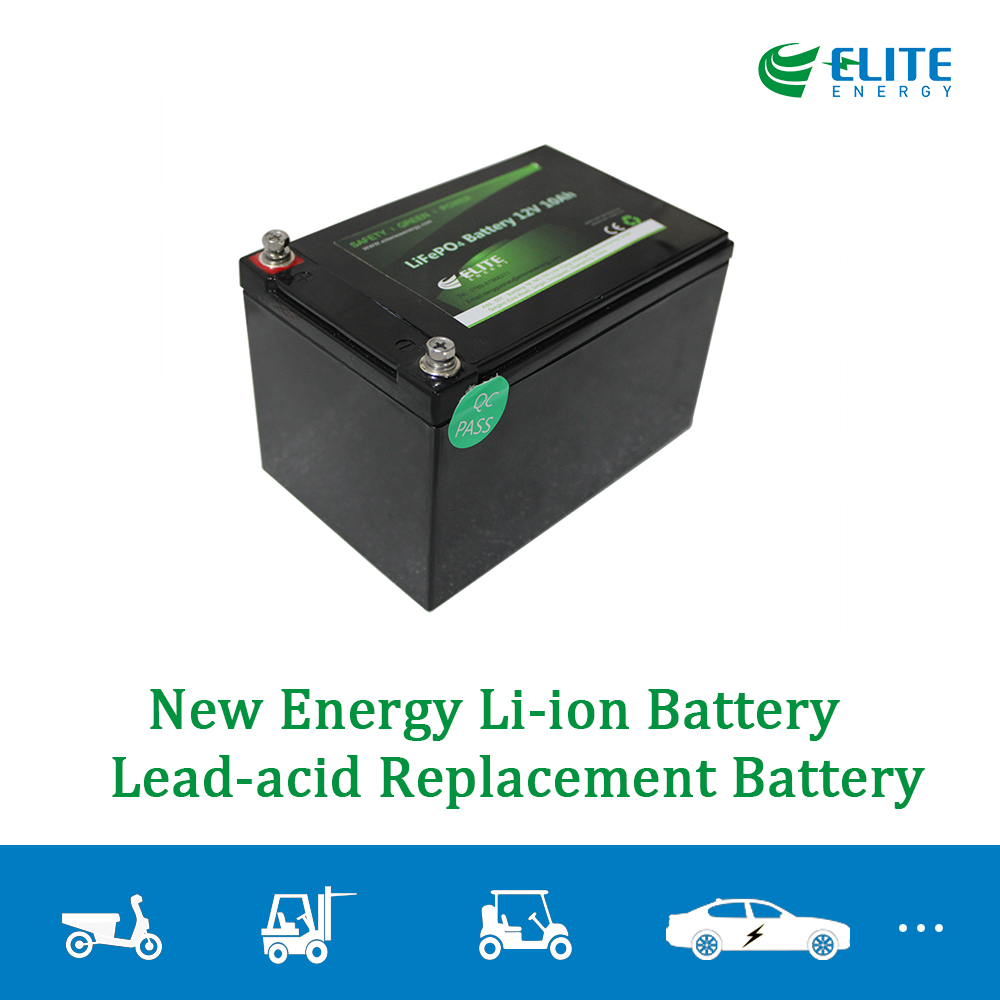

Water Dust Resistance IP54 12V 10Ah Li Ion Battery LFP UPS Power
12V 10Ah Li Iron Phosphate Battery Pack LFP Battery UPS Power Battery
◆ High-quality batteries, Exceptional voltage stability
◆ Over 3000 Cycles at 80% depth of discharge to ensure long cycle life
◆ Modular design or laser spot welding to group
◆ Suitable for high-power power products
◆ Automatic system cell Charging balancing
◆ Support fast charging & 100% deep cycle
◆ High discharge rate, sustainable discharge 200A @ 10 second
◆ LED screen display the voltage of the battery.
◆ Intelligent BMS of automatic short circuit & activation protection function
◆ High waterproof level with IP54.
| Nominal Voltage | 12.8V |
| Nominal Capacity | 10Ah |
| Energy | 115.2Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) |
| Recommend Charge Current | 2A |
| Max. Charge Current | 10A |
| Max. Continuous Discharge Current | 10A |
| Max. Pulse Current | 20A(10S) |
| Discharge Cut-off Voltage | 10V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance | IP54 |
| Cell&Method | 4S |
| Package | Plastic ABS case |
| Dimensions(in./mm.) | 151*98*95mm |
| Weight(lbs./kg.) | 1.5kg |
| Display screen | Optional |
Applications
1) Energy Storage: UPS, backup, power station.
2) EV: Golf trolleys, Electric scooters.
3) Solar Energy Storage Systems, Wind Energy Storage,Solar/Storage Home System, Solar Street Light.
4) Telecommunications Base Stations.
5) Consumer Electronics, Electric Wheelchairs, Electric Scooters,Toys
6) UPS (Uninterrupted Power Supply).
7) General Energy Storage (Such as Back-up Power, Miner's lamp, portable power supply, digital products, etc.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
Q1. Can we visit your factory?
A1: Welcome, please kindly inform us your schedule and we will arrange all the events for you.
Q2. What is the shipping methods?
A2. Usually,the goods could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). It is depend on your choose.
Q3. When will us receive the goods from your company?
A4. Normally ,it will take about 30 days for mass production and it also depend on the quantity. As for the shipping time ,we support ship by air, by sea and by express, it is depend on you. So it is better for you to confirm the order as soon as possible.
Q4. How about sample?
A4. We accept sample order for testing the product quality and please feel free to place the order with your demand.
Q5. How can I pay ?
A5. You can pay by Paypal, Western Unions , T/T, LC at sight.
Q6: How long can I store the battery ?
A6: We suggest to discharge & recharge the battery every 3 months,
it can keep battery full capacity & good function.
|
|
