ELITE NEW ENERGY MAKES GREENER LIFE
5 Years
| Ask Lasest Price | |
| Brand Name : | Elite Battery |
| Model Number : | 3.2V 6Ah |
| Certification : | CE, UL, BIS, MSDS, UN38.3 |
| Price : | $0.59-$2.99/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability : | 500000 PCS/Month |
| Delivery Time : | 30 Days |
Rechargeable 32650 3.2V 6Ah LiFePO4 Battery Cell IP65 Waterproof
Grade A Cells 32650 LiFePO4 Cells 302V 6Ah Rechargeable Lithium Battery
Main Features
☆Lighter but higher power density.
☆High charge and discharge current
☆Over 3000 cycle times long life.
☆Standardized modular design and assembly
☆Intelligent BMS with voltage actively balance function
☆Support parallel connection and series connection.
☆IP65 Waterproof ratings.
Specification
| Basic Parameter | |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 6Ah |
| Energy | 19.2Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 3.65±0.2V |
| Charge Mode | 0.2C to 3.65V, then 3.65V charge current to 0.02C(CC/CV) |
| Waterproof Level | IP54 |
| Cell&Method | 1S |
| Package | PVC |
| Dimensions(in./mm.) | Diameter: 32mm; Height: 70mm |
| Weight(lbs./kg.) | 145g |
| Charge & Discharge Current | |
| Recommend Charge Current | 1.5A |
| Max. Charge Current | 6A |
| Max. Continuous Discharge Current | 6A |
| Max. Pulse Current | 12A(10S) |
| Discharge Cut-off Voltage | 2.5V |
| Working Temperature | |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |

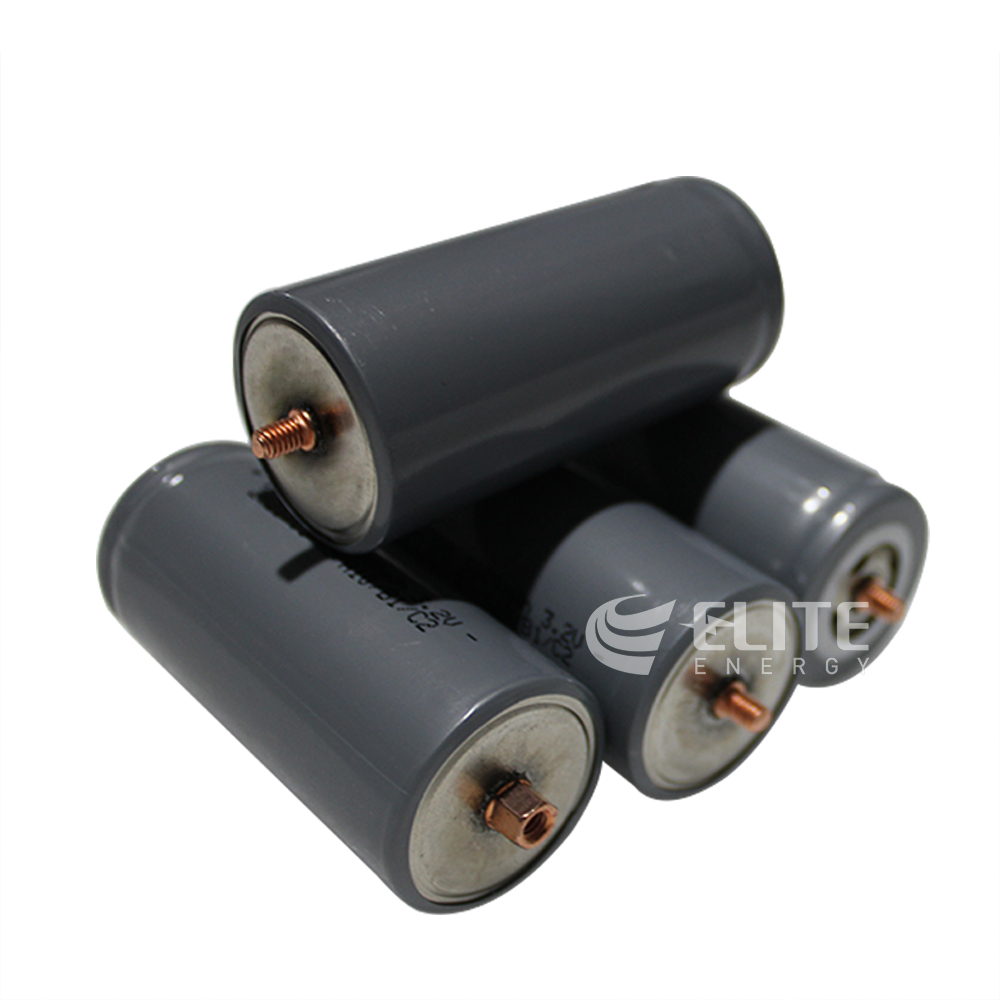

Product Images
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Why Choose Us?
Shenzhen Elite New Energy Co., Ltd is a leading battery manufacturer in China, which is committed to provide customers with safe and durable green energy products, including EV power battery systems, portable energy storage, household energy storage, micro power grid, battery solutions for telecom station power supply, UPS, solar street lights, and battery packs for police car, harvesters, AGV, forklift, balance vehicles, electric tricycles, electric wheelchairs, etc. Elite has a very professional team where most of the team members are from new energy leading company such as Optimum, HUWAI, BYD and so on. With professional R&D team, experienced technicians and advanced equipments, our mission is to provide customers with high-quality batteries and techinical battery solutions.
♛OEM/ODM are welcomed
♛More than 10 years rich experience in battery pack industry.
♛Competitive price , good quality and professional service.
♛Flexible for all projects, sample order are accepted.
♛High standard and quality control system,100% inspection before delivery
|
|
