ELITE NEW ENERGY MAKES GREENER LIFE
5 Years
| Ask Lasest Price | |
| Brand Name : | Elite |
| Model Number : | 12V 100Ah |
| Certification : | CE, UL, MSDS, UN38.3, MSDS |
| Price : | $59.99-$359.99/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability : | 10000 PCS/Month |
| Delivery Time : | 30 Days |
Phosphate Lithium Iron 12V 100Ah RV LiFePO4 Battery Rechargeable
RV Lithium Iron Phosphate Rechargeable 12V 100Ah Li-ion Camp Battery
Feature of LiFePO4 Battery
1. INTELLIGENT BMS
All of Canbat lithium batteries come with a built-in smart battery management system protects against low temperature, high temperature, over- discharge, over-recharge and short-circuits.
2. MORE USABLE CAPACITY
Sealed lead-acid batteries only provide 50% of useable energy while lithium LiFePO4 batteries provide up to 100%, which means you can discharge the battery entirely and obtain thousands of cycles.
3. LONG CYCLE LIFE
More than 2,500 cycles at a depth of discharge of 100%, 3,500 cycles at 80% and 5,500 cycles at 50%. The recommended DOD is 80%. All of our LiFePO4 batteries are backed up with Canada’s best 10-year warranty.
4. FASTER CHARGING
LiFePO4 batteries can recharge much faster than conventional sealed lead-acid batteries, giving you access to reliable power quicker. Lithium is recommended to recharge in 2 or more hours for longevity.
5. MINIMAL SELF-DISCHARGE
Lithium iron phosphate batteries have a low self-discharge rate of about 2% a month. Unlike sealed lead-acid batteries (SLA), lithium batteries do not face permanent capacity loss due to self-discharge.
IP Deep Cycle LiFePO4 Solar Storage System BMS Battery Pack
12V 100Ah LiFePO4 Battery Specification
Battery rated voltage | 12V | |
Rated capacity (10 hour rate) | 100Ah | |
Dimension | Length | 329mm (12.96inches) |
Width | 172mm (6.78inches) | |
Height | 214mm (8.43inches) | |
Total Height (with terminal) | 236mm (9.30inches) | |
Weight approx | 14.7Kgs | |
Terminal | M8 copper terminal | copper wire |
General Purpose Battery Characteristic
Cell type | LFP 32700 |
End of charge voltage | 14.6V |
End of discharge Voltage | 10V |
Charge Method | 0.2C (0.5A) CC/CV |
Max.Continuous charge current | 100A |
Nominal Discharge Current | 100A |
Max. Pulse Discharge Current | 3C/10S |
Charge Temperature | 0 ºC to 45 ºC (32F to 113F) @60±25% Relative Humidity |
Discharging Temperature | -20 ºC to 80 ºC (-4F to 140F) @60±25% Relative Humidity |
Storage Temperature | 0 ºC to 40 ºC (32F to 104F) @60±25% Relative Humidity |
12V 100Ah LiFePO4 Battery Image

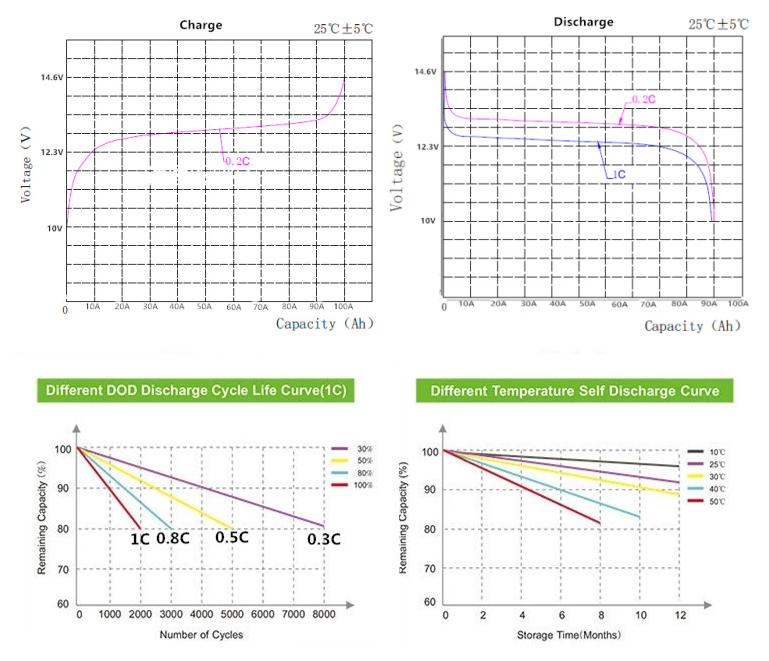

12V 100Ah LiFePO4 Battery Data Curve

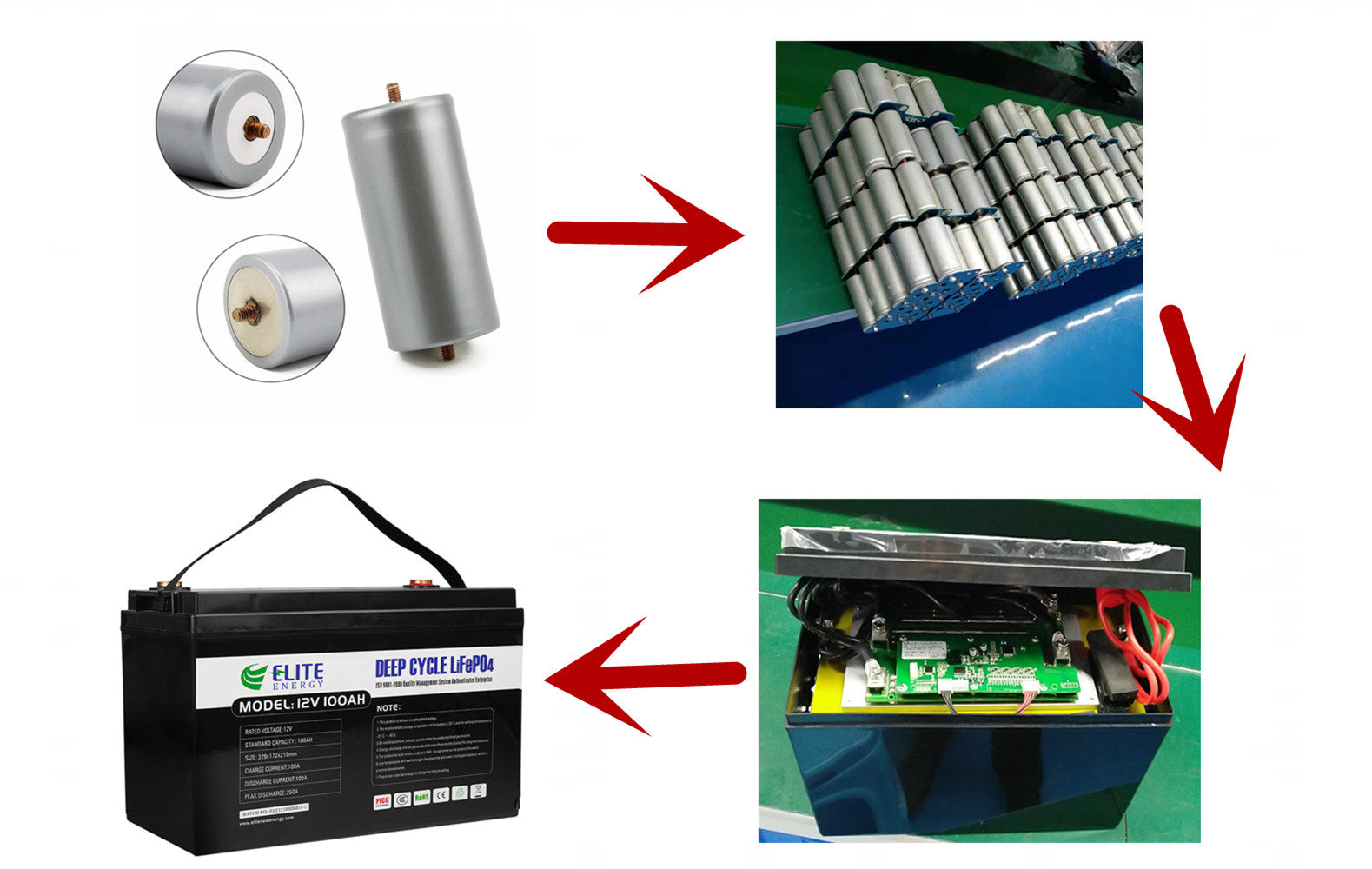

12V 100Ah LiFePO4 Battery Packing Step:
Storage and Transportation of LiFePO4 Battery 12.8V 100Ah
· Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
· During transportation,50% SOC must be kept to ensure that short circuit, appearance of liquid in the battery or immersion of battery in liquid never occur.
· Battery should be kept at -20℃～45℃ in warehouse where it’s dry, clean and well-ventilated.
· During loading of battery, attention must be paid against dropping, turning over and serious stacking.
Warning!
· Never throw the battery into water, keep it under dry, shady and cool circumstance when not use.
· Never upside down the positive and negative.
· Never connect the positive and negative of battery with metal.
· Never ship or store the battery together with metal
· Never knock, throw or trample the battery.
· Never cut through the battery with nail or other edge tool.
|
|
