ELITE NEW ENERGY MAKES GREENER LIFE
5 Years
| Ask Lasest Price | |
| Brand Name : | Elite |
| Model Number : | 51.2V 50Ah |
| Certification : | CE, UL, MSDS, UN38.3, MSDS |
| Price : | $59.99-$699.99/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability : | 10000 PCS/Month |
| Delivery Time : | 30 Days |
LFP 5120Wh 50Ah 48V Lithium Phosphate Battery Family Community ESS
48 V 50Ah Lithium Iron Phosphate LFP Battery for Family/Community ESS
Introduction of 48V 50Ah LiFePO4 Battery
TNE lithium iron phosphate battery is designed & developed to outperform traditional lead acid
batteries by offering more usable & reliable power with much less
weight and truly free of maintenance. Compared with traditional
lead-acid battery, lithium battery has overwhelming advantages in
cycle life, charging & discharging, and more tolerance in high
temperature. They are smarter and safer with BMS (Battery
Management System) to protect the battery from short circuit, over
charging, over discharging and thermo ran away.
LiFePO4 Battery Specifications of LFPW48-50
Battery Type | Lithium Iron Phosphate Battery |
Model No. | LFPW48-50 |
Voltage (V) | 48V |
Capacity (AH) | 50AH |
Dimensions L*W*H*TH (mm) | 443*410*90mm |
Weight (KG) | 30KG |
Cell Type | Prismatic |
Continuous Discharge Current | 50A |
BMS Discharge Voltage Cut-Off | 40V |
Max. Charge Current | 50A |
BMS Charge Voltage Cut-Off | 58.4V |
BMS Protection | Over-current/Over-voltage/Short circuit/ Under-voltage/Over temperature |
Self Discharge | <3% per month |
Cycle Life @80% DOD(cycles) | 2000 cycles @ 1C |
Communication | RS485. CAN |
Case | Metal Case |
Warranty Period | 3 Years |

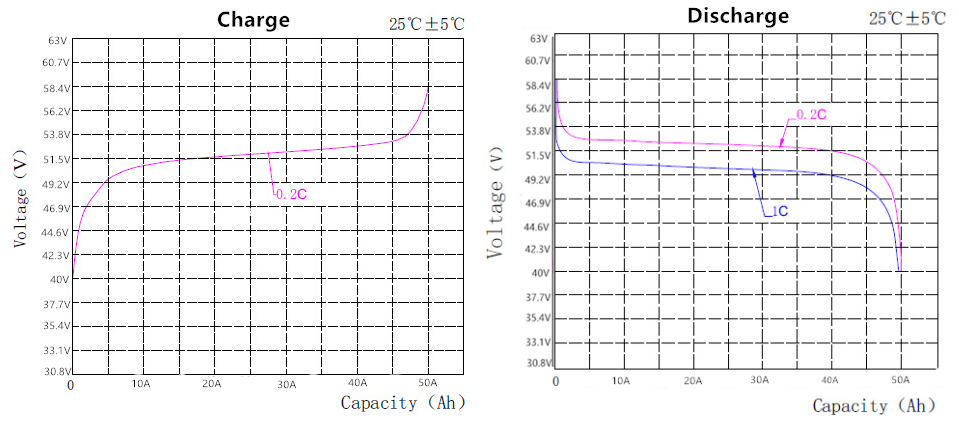

Performance Curve of the 48V 50Ah LiFePO4 Battery
LiFePO4 Battery Performance and Test Conditions
1. Standard test conditions
Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.
2. Standard Charge/Discharge
Standard Charge: 0.2C
Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 58.4V. The battery shall then be charged at constant voltage of 58.4 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05CA. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.
Standard Discharge: 0.2C
Battery shall be discharged at a constant current of 0.2C to 40V @ 20º ± 5C
FAQ
Q1. What is the biggest difference between your battery and other suppliers:
A: Safest with longer lifespan.
Q2. How about your LiFePO4 Battery delivery time?
A: 1-30 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3: How about your warranty?
A: 3 years warranty
Q4. Is this LiFePO4 Battery safe?
A: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance; price to ensure our customers benefit ;
|
|
