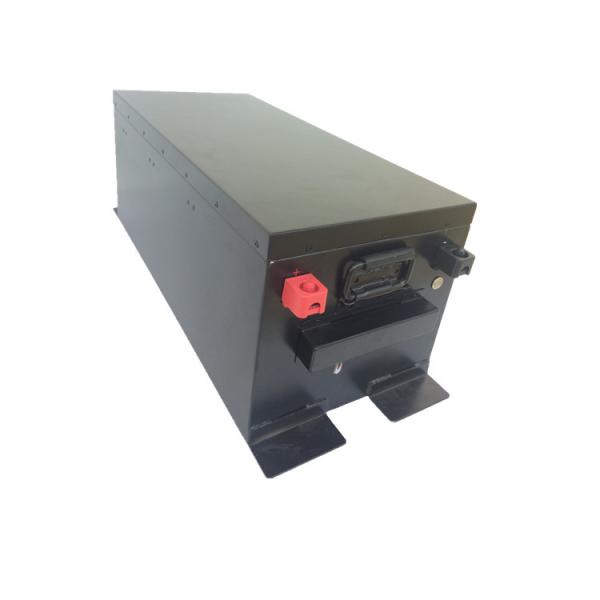

Deep Cycle 200Ah 10KWh 48V LiFePO4 Battery With Built In BMS
Deep Cycle 48V 200Ah 10Kwh LiFePO4 Battery for Solar Energy Storage
Feature
One of the advanatges of lithium iron phosphate is that is it with excellent safe performance. Strict safety tests shows that the lithium iron phosphate battery will not explode even in traffic accidents after strict safety tests. Besides, Lithium iron phosphate can be fastly charged. Using a special charger and adopting 1.5C charging current, the battery will be full charged in 40 minutes. Also, Lithium iron phosphate battery has high temperature adaptability, the thermal peak value of lithium iron phosphate battery can reach 350 to 500 degrees Celsius. What's more, lithium iron phosphate battery is with large capacity. The volume of lithium iron phosphate battery with the same capacity is 2/3 of the volume of lead acid battery and 1/3 of the weight of lead acid battery.
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Energy | 10240Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 58.4±0.2V |
| Charge Mde | 0.2C to 58.4V, then 58.4V charge current to 0.02C(CC/CV) |
| Recommend Charge Current | 20A |
| Max. Charge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Max. Pulse Current | 250A(10S) |
| Discharge Cut-off Voltage | 40V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance | IP54 |
| Cell&Method | 16S |
| Package | Metal case |
| Dimensions(in./mm.) | 685*400*385mm |
| Weight(lbs./kg.) | 105kg |
| Display screen | Yes |

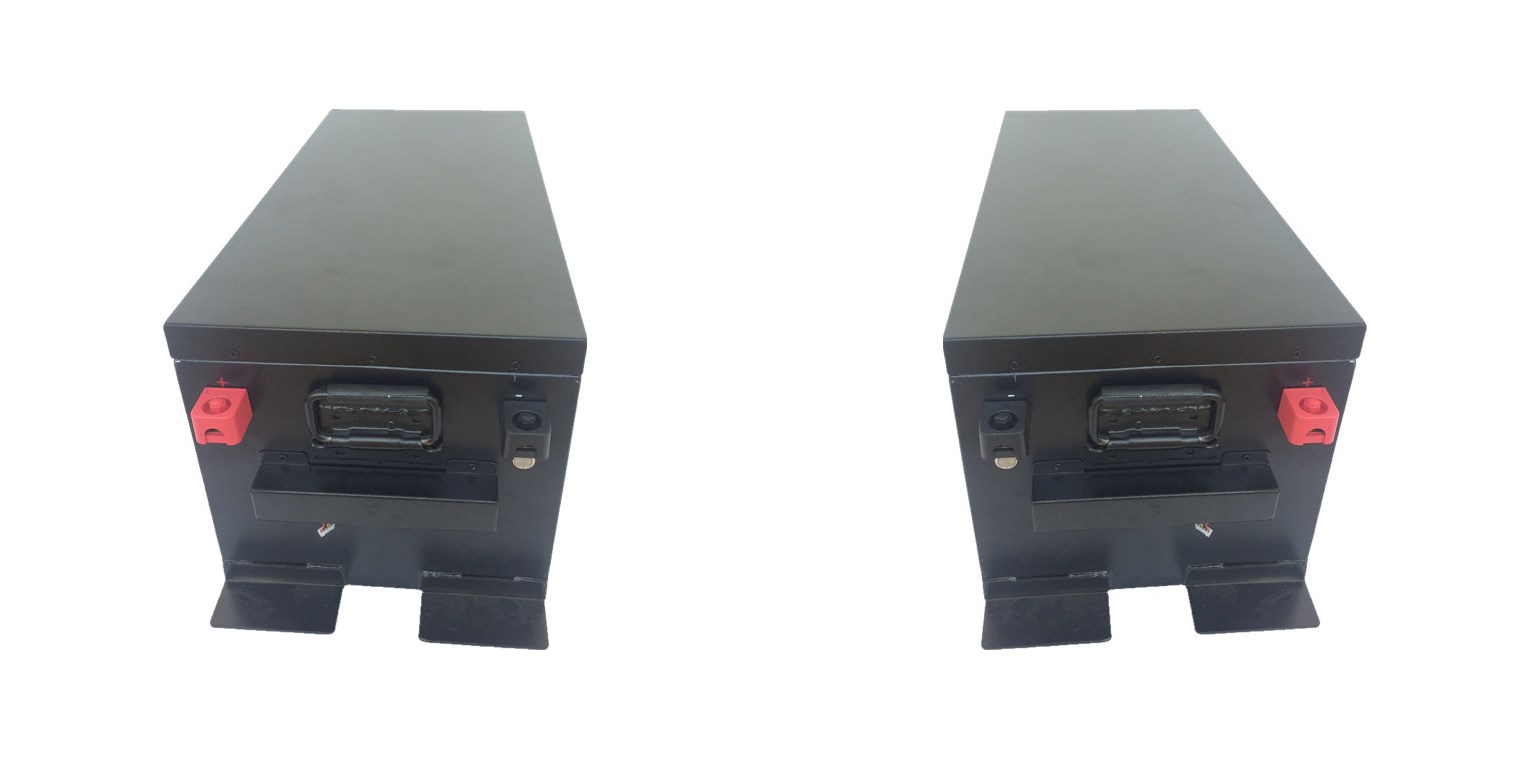

Product Images
Product Advantages
1. Professional technical team: Elite’s R&D technical team has received more than 20 inventions and application patents.
2. Unique pack technique: Elite possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.
3. Safety certification guarantee: Most batteries have been certificated according to international standard including CE, MSDS, UN38.3, UL etc..
4. Professional sales team: Elite possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.
5. Punctual delivery: Elite has strict production plan to promise punctual delivery of the goods.
6. Perfect after-sales service: Elite has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.
Production Line
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
