ELITE NEW ENERGY MAKES GREENER LIFE
5 Years
| Ask Lasest Price | |
| Brand Name : | Elite Battery |
| Model Number : | 3.2V 2200mAh |
| Certification : | CE, UL, MSDS, UN38.3, MSDS |
| Price : | $0.59-1.99/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal, MoneyGram |
| Supply Ability : | 10000 PCS/Month |
| Delivery Time : | 30 Days |
Rechargeable LiFePO4 2200mAh ESS Battery System 26650 Li Ion Cell
LiFePO4 ESS Battery System Rechargeable 3.2V 2200mAh 26650 Li-ion Cell
Feature
1. Lithium iron phosphate battery has long life span. In the case of standard charging, the service life of lithium iron phosphate battery can reach more than seven years, and the cycle span are more than two thousand times. The average carbonic acid battery has a service life of only more than a year and can not be used for up to 500 cycles, and its power storage rate will become lower and lower over time.
2. Lithium iron phosphate battery has high temperature adaptability, the thermal peak value of lithium iron phosphate battery can reach 350 to 500 degrees Celsius.
3. Lithium iron phosphate is with excellent safe performance. Strict safety tests shows that the lithium iron phosphate battery will not explode even in traffic accidents after strict safety tests.
| Nominal Voltage | 3.2V |
| Nominal Capacity | 2200mAh |
| Energy | 7.04Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 3.65±0.2V |
| Charge Mode | 0.2C to 3.65V, then 3.65V charge current to 0.02C(CC/CV) |
| Recommend Charge Current | 1000mA |
| Max. Charge Current | 2000mA |
| Max. Continuous Discharge Current | 2200mA |
| Max. Pulse Current | 4400mA(10S) |
| Discharge Cut-off Voltage | 2.5V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance | IP54 |
| Cell&Method | 1S |
| Dimensions(in./mm.) | ø: 26.50mm H: 65.00mm |
| Weight(lbs./kg.) | 86g |

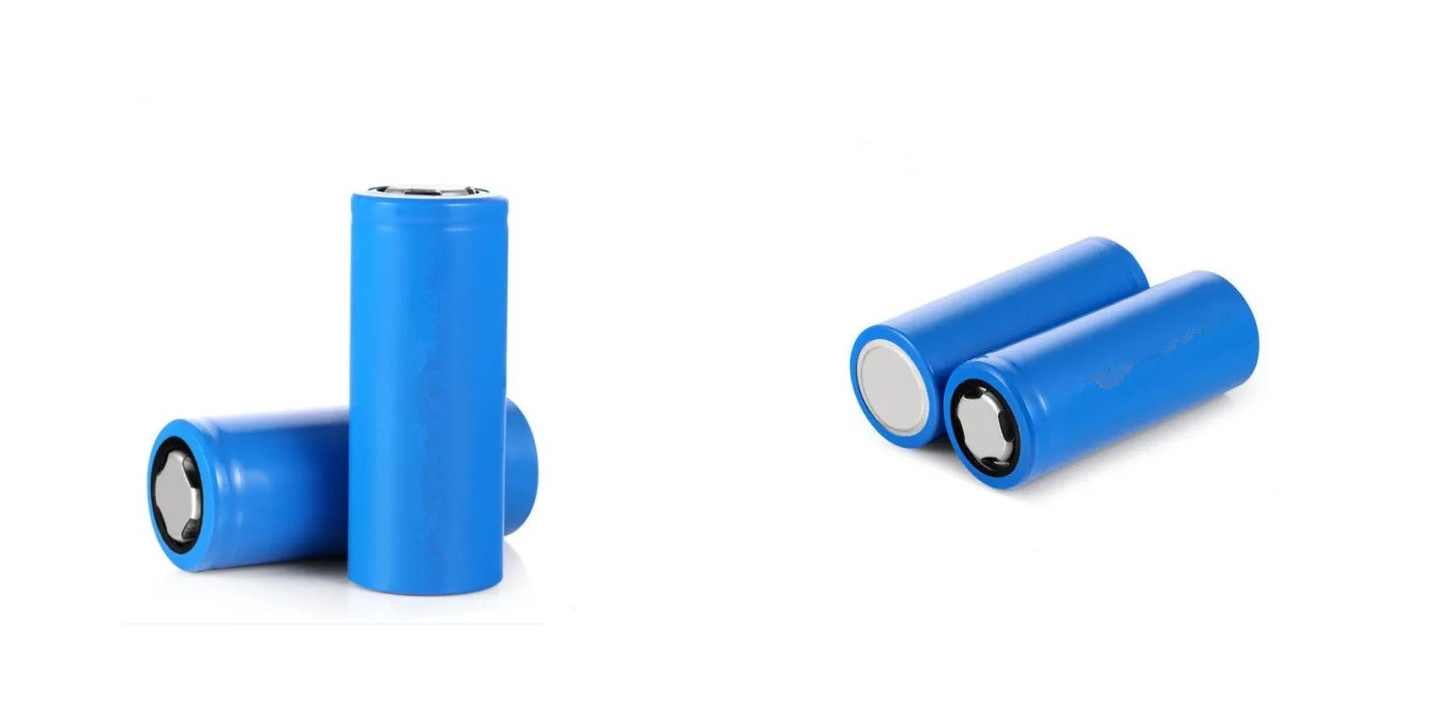

Product Images
Product Advantages
1. Professional technical team: Elite’s R&D technical team has received more than 20 inventions and application patents.
2. Unique pack technique: Elite possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.
3. Safety certification guarantee: Most batteries have been certificated according to international standard including CE, MSDS, UN38.3, UL etc..
4. Professional sales team: Elite possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.
5. Punctual delivery: Elite has strict production plan to promise punctual delivery of the goods.
6. Perfect after-sales service: Elite has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.
Production Line
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving
your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process
to ensure the stability and consistency of the products. We have a
team of professional workers who are engaged in quality management
during every process. Besides, all of our products have 3-5 years
warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production
program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you
according to your detailed order and situation.
|
|
