ELITE NEW ENERGY MAKES GREENER LIFE
5 Years
| Ask Lasest Price | |
| Brand Name : | Elite Battery |
| Model Number : | 73.6V 155Ah |
| Certification : | CE, UL, MSDS, UN38.3, MSDS |
| Price : | $199.99-$2599.99/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability : | 10000 PCS/Month |
| Delivery Time : | 30 Days |
110kg 72V LiFePO4 Battery
Electric Vehicle LiFePO4 Battery 73.6V 155Ah Lithium Li-ion Battery
Feature
LiFePO4 battery is with high energy density. In the same capacity,
the weight of lifepo4 battery is one third of VRLA. The volume of
lifepo4 battery is one half of VRLA. Besides, LiFePO4 battery is
with long cycle life. Charging and discharging more than 2000 times
in condition of 100% DOD, the residual capacity of lifepo4 battery
is more than 80%. Also, LiFePO4 battery is with good temperature
performance. LiFepo4 battery has good performance at different
temperature, and could be used at -20~60. What's more, LiFePO4
battery is with high power output, 90% nominal capacity released at
1C rate discharge.
| Nominal Voltage | 73.6V |
| Nominal Capacity | 155Ah |
| Energy | 11408Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 83.95±0.2V |
| Charge Mode | 0.2C to 83.95V, then 83.95V charge current to 0.02C(CC/CV) |
| Recommend Charge Current | 20A |
| Max. Charge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Max. Pulse Current | 250A(10S) |
| Discharge Cut-off Voltage | 57.5V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance | IP67 |
| Cell&Method | 23S |
| Package | Metal Case |
| Dimensions(in./mm.) | 1020*330*240mm |
| Weight(lbs./kg.) | 110kg |

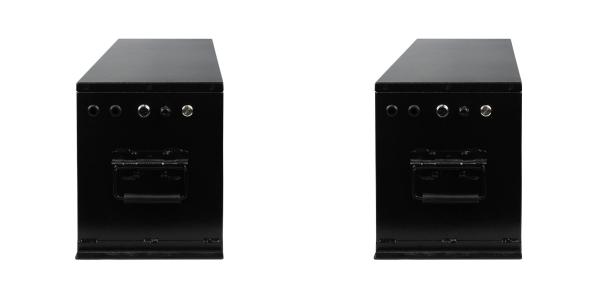

Product Images
Product Advantages
1. Professional technical team: Elite’s R&D technical team has received more than 20 inventions and application patents.
2. Unique pack technique: Elite possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.
3. Safety certification guarantee: Most batteries have been certificated according to international standard including CE, MSDS, UN38.3, UL etc..
4. Professional sales team: Elite possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.
5. Punctual delivery: Elite has strict production plan to promise punctual delivery of the goods.
6. Perfect after-sales service: Elite has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving
your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process
to ensure the stability and consistency of the products. We have a
team of professional workers who are engaged in quality management
during every process. Besides, all of our products have 3-5 years
warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production
program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you
according to your detailed order and situation.
|
|
