ELITE NEW ENERGY MAKES GREENER LIFE
5 Years
| Ask Lasest Price | |
| Brand Name : | Elite Battery |
| Model Number : | 24V 800Ah |
| Certification : | CE, UL, MSDS, UN38.3, MSDS |
| Price : | $159.99-$4999.99/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability : | 10000 PCS/Month |
| Delivery Time : | 30 Days |
Safety OEM ODM 24V Camp Power Supply 800Ah Custom Lithium Battery
OEM Camp/Boat Power Supply 24V 800Ah Lithium Iron LiFePO4 Battery
Feature
1. Safety: Currently the safest li-ion battery, CE,UL, RoHS approved, none fire, none explosive.
2. Environment friendly: No toxic material contained.
3. Deep cycle: Can reach more than 2000 cycles, with more than 6 years life span.
4. Rechargable: Can be charge anytime without momery effect.
5. Low self discharge rate with high retention rate: With less than 3% self-discharge rate monthly and more than 80% retention rate after 2000 cycles.
Model Type | ELT-LFP-24V-800Ah |
Energy | 20480Wh |
Nominal Voltage | 25.6V |
Nominal Capacity | 800Ah |
Recommend Charge Current | 20A |
Max. Charge Current | 100A |
Max. Continuous Discharge Current | 100A |
Max. Pulse Current | 250A(10S) |
Internal Resistance | ≤10mΩ |
Cycle Life | >3000 cycles@1C 100% DOD |
Months Self Discharge | <3% |
Efficiency of Charge | 100%@0.5C |
Efficiency of Discharge | 96-99% @1C |
Charge Cut-off Voltage | 29.2±0.2V |
Charge Mode | 0.2C to 29.2V, then 29.2V charge current to 0.02C(CC/CV) |
Discharge Cut-off Voltage | 20V |
Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
Cell&Method | 8S |
Package | Metal Case |
Dimension | 897*460*278mm |
Weight(lbs./kg.) | 160kg |

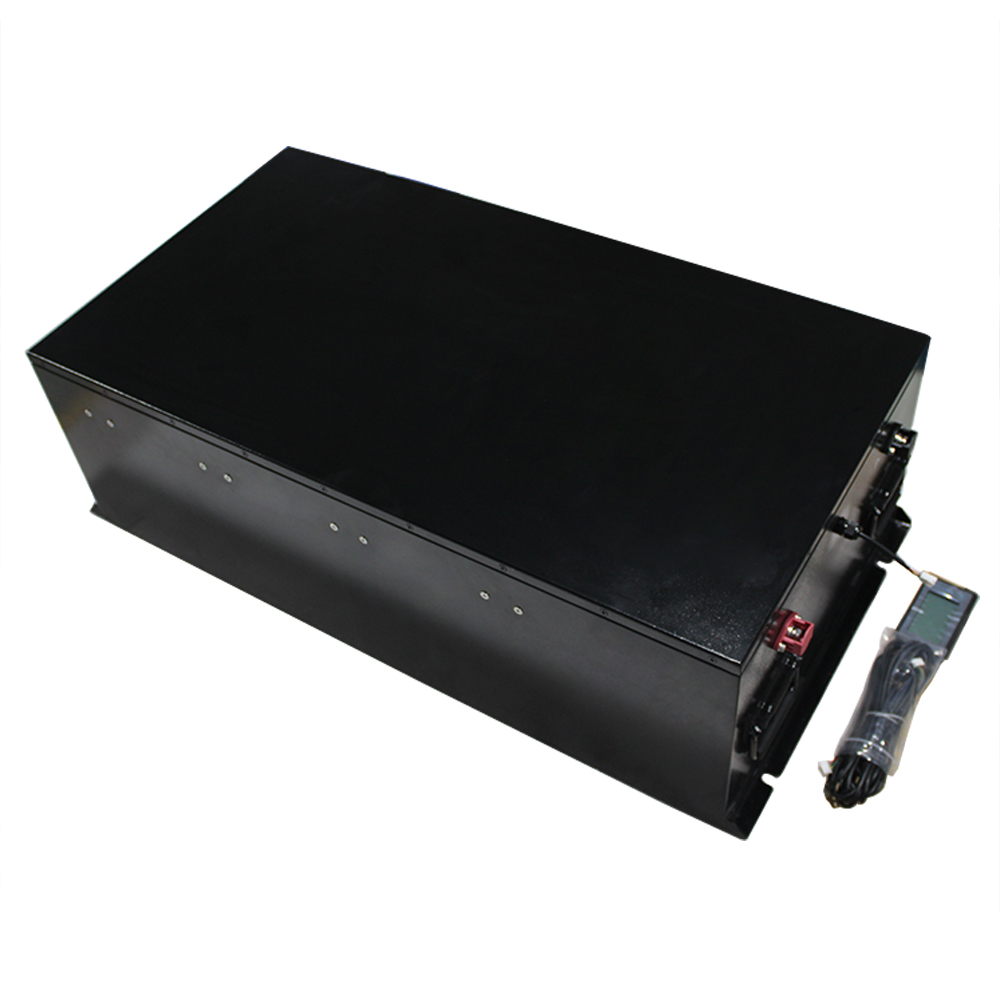

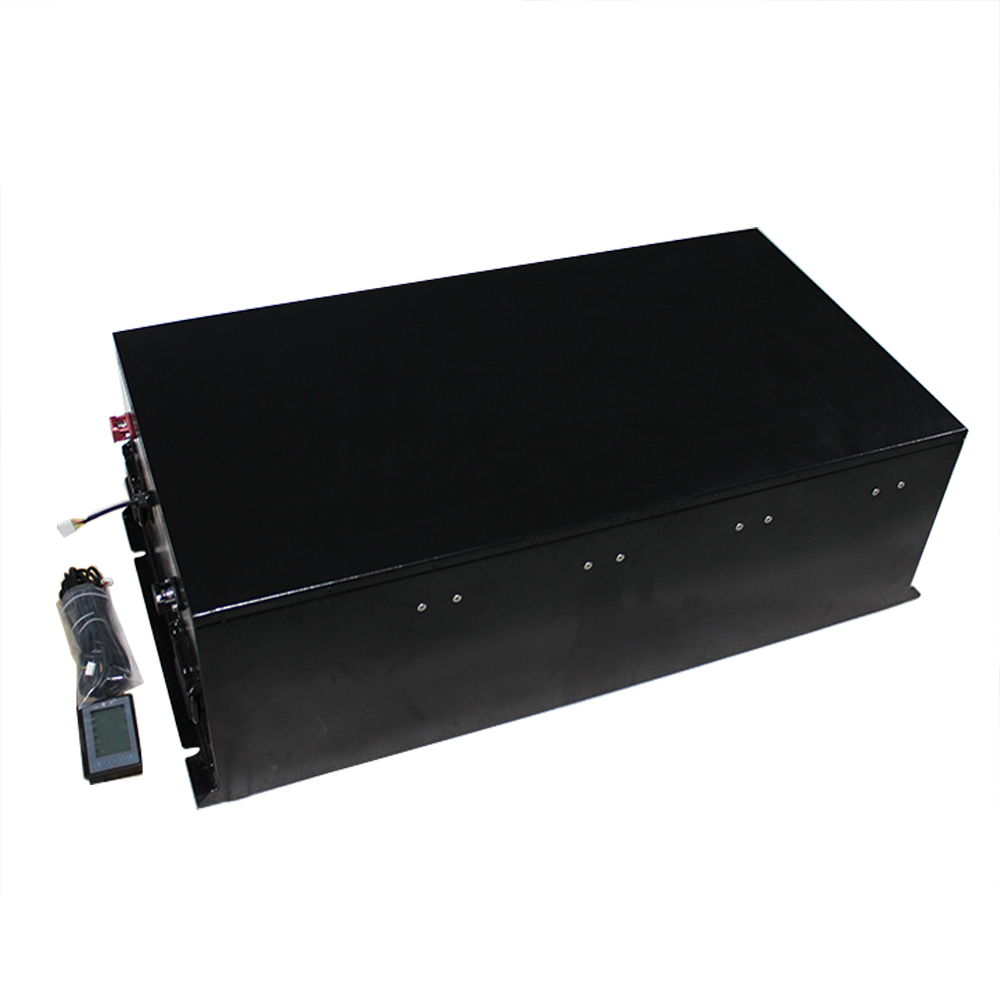

Product Images
Product Advantages
1. Professional technical team: Elite’s R&D technical team has received more than 20 inventions and application patents.
2. Unique pack technique: Elite possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.
3. Safety certification guarantee: Most batteries have been certificated according to international standard including CE, MSDS, UN38.3, UL etc..
4. Professional sales team: Elite possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.
5. Punctual delivery: Elite has strict production plan to promise punctual delivery of the goods.
6. Perfect after-sales service: Elite has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.
Production Line
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving
your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process
to ensure the stability and consistency of the products. We have a
team of professional workers who are engaged in quality management
during every process. Besides, all of our products have 3-5 years
warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production
program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you
according to your detailed order and situation.
|
|
