EV 11040Wh 150Ah 72v Lifepo4 Lithium Battery No Toxic Material

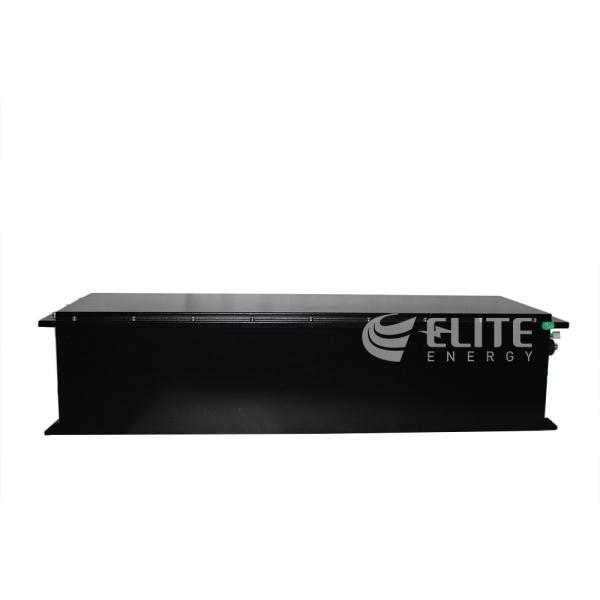

72V 150Ah LiFePO4 Battery Lithium Iron Phosphate Li-ion EV Batterie
Product Description
Feature
The lifepo4 battery is one of the safest and environmentally friendly energy in the world, which contains no toxic material and other pollution materials. All of Elite's lifepo4 batteries have built-in BMS to protect the battery from to protect the battery from over-charge/discharge, over temperature, short circuit etc.. Besides, most of the batteries are approved by CE, MSDS, UN38.3 and UL. Also, the cycle life of our batteries can reach more than 2000 cycles, with the DOD of more than 80% and with a low self-discharge rate(< 3% monthly). And the battery can have excellent performance under high temperature situation.
Nominal Voltage | 73.6V |
Nominal Capacity | 150Ah |
11040Wh | |
Internal Resistance | ≤10mΩ |
Cycle Life | >3000 cycles@1C 100% DOD |
Months Self Discharge | <3% |
Efficiency of Charge | 100%@0.5C |
Efficiency of Discharge | 96-99% @1C |
Charge Cut-off Voltage | 83.95±0.2V |
Charge Mode | 0.2C to 83.95V, then 83.95V charge current to 0.02C(CC/CV) |
Recommend Charge Current | 20A |
Max. Charge Current | 100A |
Max. Continuous Discharge Current | 100A |
Max. Pulse Current | 250A(10S) |
Discharge Cut-off Voltage | 57.5V |
Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
Water Dust Resistance | IP54 |
Cell&Method | 23S |
Package | Metal Case |
Dimensions(in./mm.) | |
Weight(lbs./kg.) | 58kg |
Product Images
Company Information
Introduction
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
