ELITE NEW ENERGY MAKES GREENER LIFE
5 Years
| Ask Lasest Price | |
| Brand Name : | Elite Battery |
| Model Number : | 12V 60Ah |
| Certification : | CE, UL, MSDS, UN38.3, MSDS |
| Price : | $59.99-$199.99/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal, MoneyGram |
| Supply Ability : | 10000 PCS/Month |
| Delivery Time : | 30 Days |

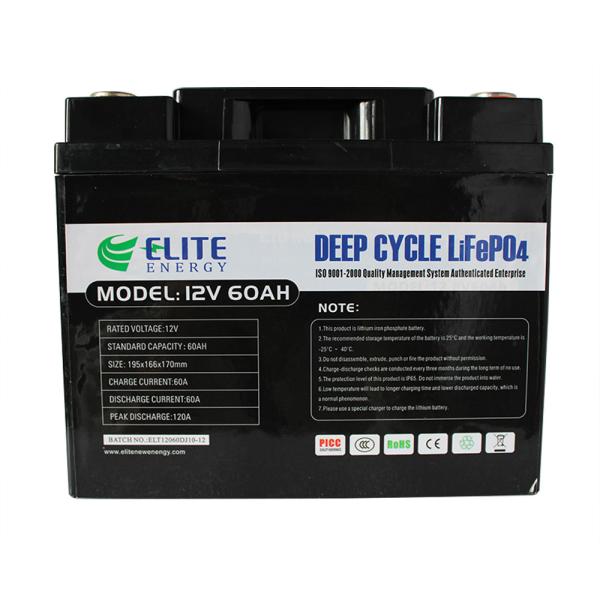

Lithium Po4 IP54 12V 60Ah Deep Cycle ESS Battery High Energy Density
12V Rechargeable LiFePO4 Battery 60Ah Lithium-iron Battery
Feature
1. Long life span: The life span of lifepo4 battery is relatively long, whose cycle times can reach more than 3000-5000, with more than 6 years life span.
2. High energy density: lithium iron phosphate battery has high storage density, which has reached 460-600 Wh/kg at present, about 6-7 times higher than lead acid battery.
3. High efficiency output: standard discharge 2~5 C, continuous high current discharge up to 10 C, instantaneous pulse discharge (10 S) up to 20C.
4. Environmental protection: the battery is generally considered to contain no heavy metals and rare metals (nickel-hydrogen batteries contain), non-toxic, non-polluting, in line with European RoHS regulations, is an absolute green battery approved by RoHS.
5.Without memory effect: rechargeable batteries often work under full charged but no full discharged conditions, and the capacity is quickly lower than the rated capacity. This phenomenon is called memory effect. Such as Ni-MH, Ni-Cad batteries have memory, but lithium iron phosphate batteries do not have this phenomenon, no matter what state the battery is on, it can be charged or used at any time, no need to charge it under the situation of fully discharged. The parameters of 12V 352Ah battery were shown below:
| Nominal Voltage | 12.8V |
| Nominal Capacity | 60Ah |
| Energy | 768Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) |
| Recommend Charge Current | 12A |
| Max. Charge Current | 60A |
| Max. Continuous Discharge Current | 60A |
| Max. Pulse Current | 120A(10S) |
| Discharge Cut-off Voltage | 10V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance | IP54 |
| Cell&Method | 4S |
| Package | ABS plastic case |
| Dimensions(in./mm.) | 265*168*211mm |
| Weight(lbs./kg.) | 7kg |
Product Images
Application of 12V 60Ah Battery
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
Company Information
Introduction
Shenzhen Elite New Energy Co., Ltd is a leading battery manufacturer in China, which is committed to provide customers with safe and durable green energy products, including EV power battery systems, portable energy storage, household energy storage, micro power grid, battery solutions for telecom station power supply, UPS, solar street lights, and battery packs for police car, harvesters, AGV, forklift, balance vehicles, electric tricycles, electric wheelchairs, etc.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving
your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process
to ensure the stability and consistency of the products. We have a
team of professional workers who are engaged in quality management
during every process. Besides, all of our products have 3-5 years
warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production
program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you
according to your detailed order and situation.
|
|
