ELITE NEW ENERGY MAKES GREENER LIFE
5 Years
| Ask Lasest Price | |
| Brand Name : | Elite Battery |
| Model Number : | 48V 100Ah |
| Certification : | CE, UL, MSDS, UN38.3, MSDS |
| Price : | $199.99-$1199.99/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability : | 10000 PCS/Month |
| Delivery Time : | 30 Days |

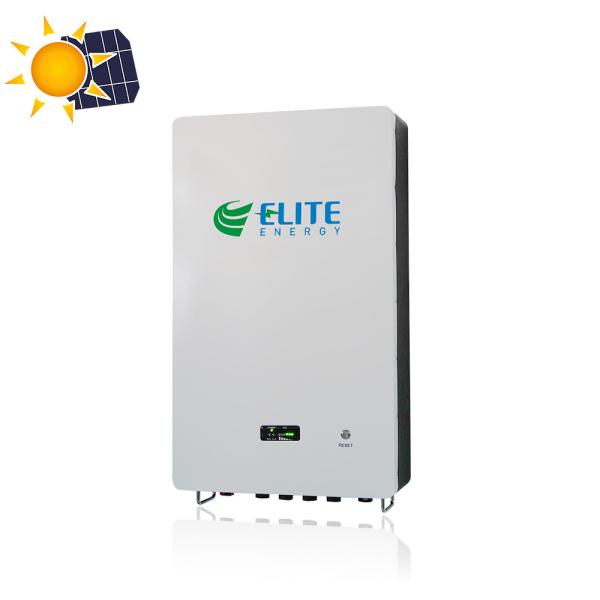

51.2V LiFePO4 Powerwall Battery Pack 5KWh 10Kwh Wall Mounted For ESS
51.2V LiFePO4 Powerwall Battery Pack 5KWh 10Kwh Wall-mounted Li-ion Battery for ESS
Wall-mounted Battery Advantages
Compact design and lightweight;
Easily installation and operation;
OEM&ODM service and accept print your logo;
Support parallel connection to max 160KWh;
CAN/RS485/RS232 communication port are available;
With intelligent BMS system for multiple protection;
Feature with IP67 that suit for indoor/outdoor;
Wide compatible with most inverter brands;
5years warranty and 10 years life expectancy;
Powerwall Battery Specification
| Electrical Characteristics | Model | ELT-PW-5K | ELT-PW-10K | ||||
| Nominal Voltage | 51.2V | ||||||
| Nominal Capacity | 100Ah | 200Ah | |||||
| Energy | 5120Wh | 10240 | |||||
| Battery Type | LiFePO4 Battery | ||||||
| Internal Resistance | ≤10mΩ | ||||||
| Life Span | >6000 cycles | ||||||
| Months Self Discharge | <3% | ||||||
| Efficiency of Charge | 100%@0.5C | ||||||
| Efficiency of Discharge | 96-99% @1C | ||||||
| Standard Charge | Charge Cut-off Voltage | 58.4±0.2V | |||||
| Charge Mode | 0.2C to 58.4V, then 40V charge current to 0.02C(CC/CV) | ||||||
| Recommend Charge Current | 20-50A | ||||||
| Max. Charge Current | 100A | 200A | |||||
| Standard Discharge | Max. Continuous Discharge Current | 100A | 200A | ||||
| Max. Pulse Current | 150A | 300A | |||||
| Discharge Cut-off Voltage | 40V | ||||||
| Environmental | Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity | |||||
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity | ||||||
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity | ||||||
| Water Dust Resistance | IP67 | ||||||
| Mechanical | Package | Metal Case | |||||
| Dimensions(in./mm.) | 450*163*750mm | 520*163*880mm | |||||
| Weight(lbs./kg.) | 55kg | 100kg | |||||
Parallel Connection | YES | ||||||
| Others | Certification | CE, MSDS, UN38.3 | |||||
| Warranty | Standard 5 years, 10+ years upon request | ||||||
| OEM | Support for customized dimension, current, logo and so on. | ||||||
Household Powerwall Images
Factory Service
>1 OEM rechargeable Lithium battery manufacturer in China over 10years;
>2 Specialized in LiFePO4 battery and Li-ion Battery pack and other customized project;
>3 Our batteries got MSDS, UN38.3, CE, UKCA BIS ect certifications;
>4 We have succeeded in selling our batteries to the international markets of America, Canada, Europe, Australia, Africa, and Asia;
>5 Perfect service with pre-sales recommend solution and after sales on-line technical support;
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
FAQ
Q: Are you trading company or manufacturer?
A: Elite are factory based on Donguan, China(Oversea office is in Shenzhen)
Q: Can I have samples to test the quality?
A: Yes, sample order is accepted. Please kindly inform us your prefer model.
Q: Can we print our compant logo/brand on the product?
A: Yes, for bulk order is available and please inform us in advance.
Q. What is your terms of payment?
A: Usually T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q:What is your Shipping way?
A: Sample & small order could be shipped to with UPS/DHL/FEDEX/TNT or other DDP/DDU service.
Big order will recommend to shipp by sea, will be more competitive.
|
|
