ELITE NEW ENERGY MAKES GREENER LIFE
5 Years
| Ask Lasest Price | |
| Brand Name : | Elite |
| Model Number : | 51.2V 50Ah |
| Certification : | CE, UL, MSDS, UN38.3, MSDS |
| Price : | $59.99-$999.99/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability : | 10000 PCS/Month |
| Delivery Time : | 20-30 Days |

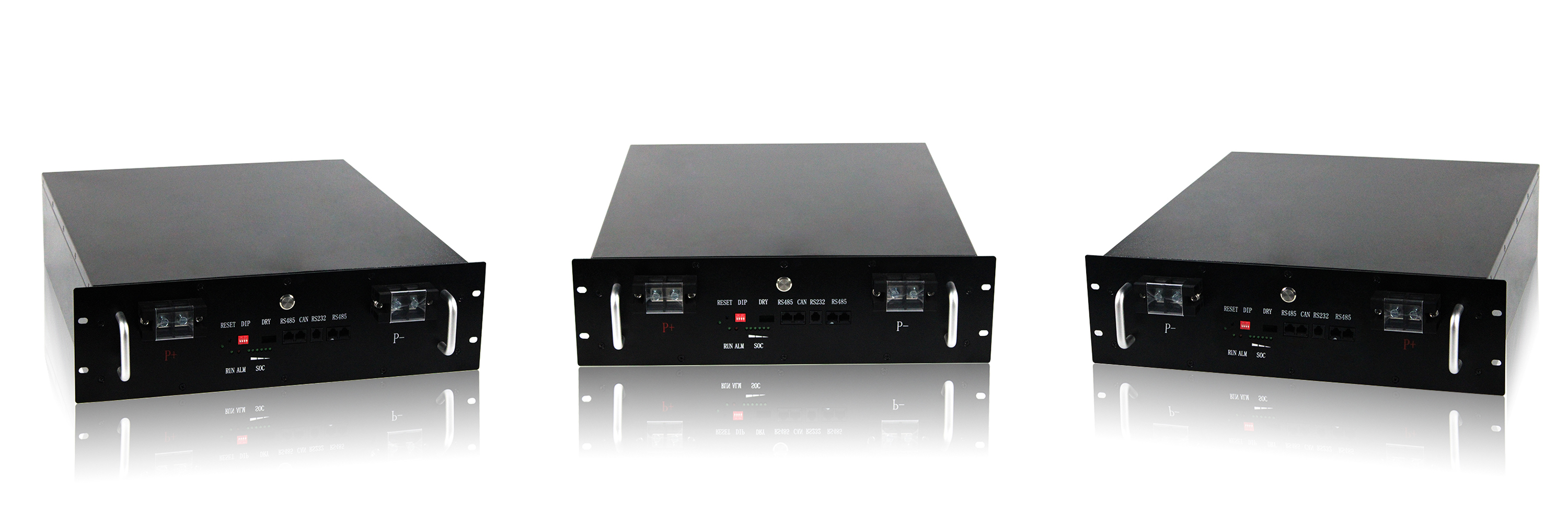

Stackable Rack-mounted LiFePO4 Battery Pack 48V 50Ah Lithium Ion Battery For Telecom Station
Lithium Battery Features
High Safety
Safety LiFePO4 battery , almost eliminate the risk of explosion or
combustion under overcharging or short circuit situation.
Excellent Deep Cycle Ability
High performance in deep cycle using and recover quickly upon over
discharging and extend the float service life.
Low Self Discharge
Using high quality raw materials and gel electrolyte ensures the
LFP batteries have less self-discharge.
Free Maintenance
No daily maintenance work and costs. Just charge and discharge
| Electrical Characteristics | Model | 51.2V 50AH | 51.2V 100AH | 51.2V 130AH | 51.2V 200AH | ||||
| Energy | 2560Wh | 5120Wh | 6656Wh | 10240Wh | |||||
| Battery Type | LiFePO4 Battery | ||||||||
| Internal Resistance | ≤10mΩ | ||||||||
| Cycle Life | >4000 cycles@1C 100% DOD | ||||||||
| Months Self Discharge | <3% | ||||||||
| Efficiency of Charge | 100%@0.5C | ||||||||
| Efficiency of Discharge | 96-99% @1C | ||||||||
| Standard Charge | Charge Cut-off Voltage | 58.4±0.2V | |||||||
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) | ||||||||
| Recommend Charge Current | 20-50A | 20-50A | 20-50A | 20-50A | |||||
| Max. Charge Current | 50A | 100A | 100A | 100A | |||||
| Standard Discharge | Max. Continuous Discharge Current | 50A | 100A | 100A | 100A | ||||
| Max. Pulse Current | 60A,@<10s | 110A,@<10s | 105A,@<10s | 110A,@<10s | |||||
| Discharge Cut-off Voltage | 40V | ||||||||
| Environmental | Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity | |||||||
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity | ||||||||
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity | ||||||||
| Water Dust Resistance | IP21 | ||||||||
| Mechanical | Package | Metal case | |||||||
| Dimensions(mm.) | 483*400*133 | 483*500*177 | 483*558*177 | 483*500*267 | |||||
| Weight(kg.) | 30 | 50 | 56 | 83 | |||||
| Display screen | Optional | ||||||||
| Bluetooth | Optional | ||||||||
| Parallel Connection | Optional | ||||||||
| Communication | RS485/CAN | ||||||||
| Others | Certification | CE, MSDS, UN38.3 | |||||||
| Warranty | Standard 3 years, 5+ years upon request | ||||||||
| OEM | Support for customized dimension, current, logo and so on. | ||||||||
LFP Battery Overview
Li-ion Battery Delivery
1. The bulk order's production time is about 30 working days and
the shipping time is depend on the shipping methods
2. Shipping: Ship by Express/Air/Sea are optional.
3. Packing: Carton/Wooden Case
Q&A
Q: Are you trading company or manufacturer?
A: Elite are original factory and assemable the battery pack by ourself.
Q: Can I have samples to test?
A: Yes,we can supply samples for testing, please kinldy contact us with your demand.
Q: Do you provide after-sales service?
A: Yes, usally the warranty is 3 years
Q: Can your factory print our logo/brand on the product?
A: Yes, and we will do this free of charge if the order quantity is big enough, please contact us for more details.
Can I fast charge my battery?
A: It support but we do not recommend as it may be harmful for the battery.
Q:what services can we provide?
A: Delivery Terms: FOB,CIF,EXW,FCA,DDP；
Payment Terms: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
|
|
