ELITE NEW ENERGY MAKES GREENER LIFE
5 Years
| Ask Lasest Price | |
| Brand Name : | Elite |
| Model Number : | 12V 100Ah |
| Certification : | CE, UL, MSDS, UN38.3, CB |
| Price : | $199.99-$299.99/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability : | 10000 PCS/Month |
| Delivery Time : | 30 Days |
Features of LiFePO4 battery:
1. Safety: Safest Li-ion battery, CE UL approved, built-in
protection circuit board (BMS), no fire, no explosion
2. Clean and Green energy, no toxic material contained
3. Long life cycle, > 2000 times deep cycle at 1C rate, 6-8
times of lead acid battery
4. No memory effect, highly efficient charge anytime, no reduction
of capacity
5. Operation temperature: -20~65 C
6. Small size and light weight: 1/2 size of lead acid battery, 70%
size of Ni-MH Ni-CD battery, 1/2 weight of lead acid battery
7. Good performance at high temperature and high temperature
resistance
8. Low self-discharge rate: < 3% monthly
Battery Parameters:
Part Number | Lithium-Ion Battery 12V 100Ah Battery Pack |
MAIN PARANETER | |
Rated Capacity | 100Ah |
Nominal Voltage | 12V |
Max Charge Voltage | 14.6V |
Discharge Cut Off Voltage | 10.0V |
Charging Current | 100Ah |
Max. Continuous Discharging Current | 100Ah |
Cycle Life | 3000 times |
Discharge Rate | ≤3% |
MECHANICAL SPECIFICATIONS | |
Dimensions (L*W*H) | 329mm (L) * 172mm(W) * 214mm (H) |
Weight | 14.7Kg |
OTHERS | |
Operating Temperature | Charging: 0 ~ 45ºC/Discharging:-20 ~ 60ºC |
Storage Temperature | -10 ~ 45ºC |
Humidity | 5% to 95% relative humidity |
Certification | CE/RoHS/MSDS/UN38.3 |
Warranty | 3 years |
Delivery period | 15-30 days, depending on stock and quantity. |
FEATURES | |
Main protection function Overcharge, over discharge, over current, short circuit, etc. | |
Main Applications:
1. Energy Storage: Solar-Wind Power System / City Grid (On/Off) /
Community and Family / RV Motorhome /Golf Carts Battery / Boat
Marine Yachts / Electric Skateboard / Vehecle.
2.Back-up System and UPS:Telcom Base / CATV system / Computer Server Center / Medical
Instrumnt / Military Equipment.
3. Other Applications: Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.

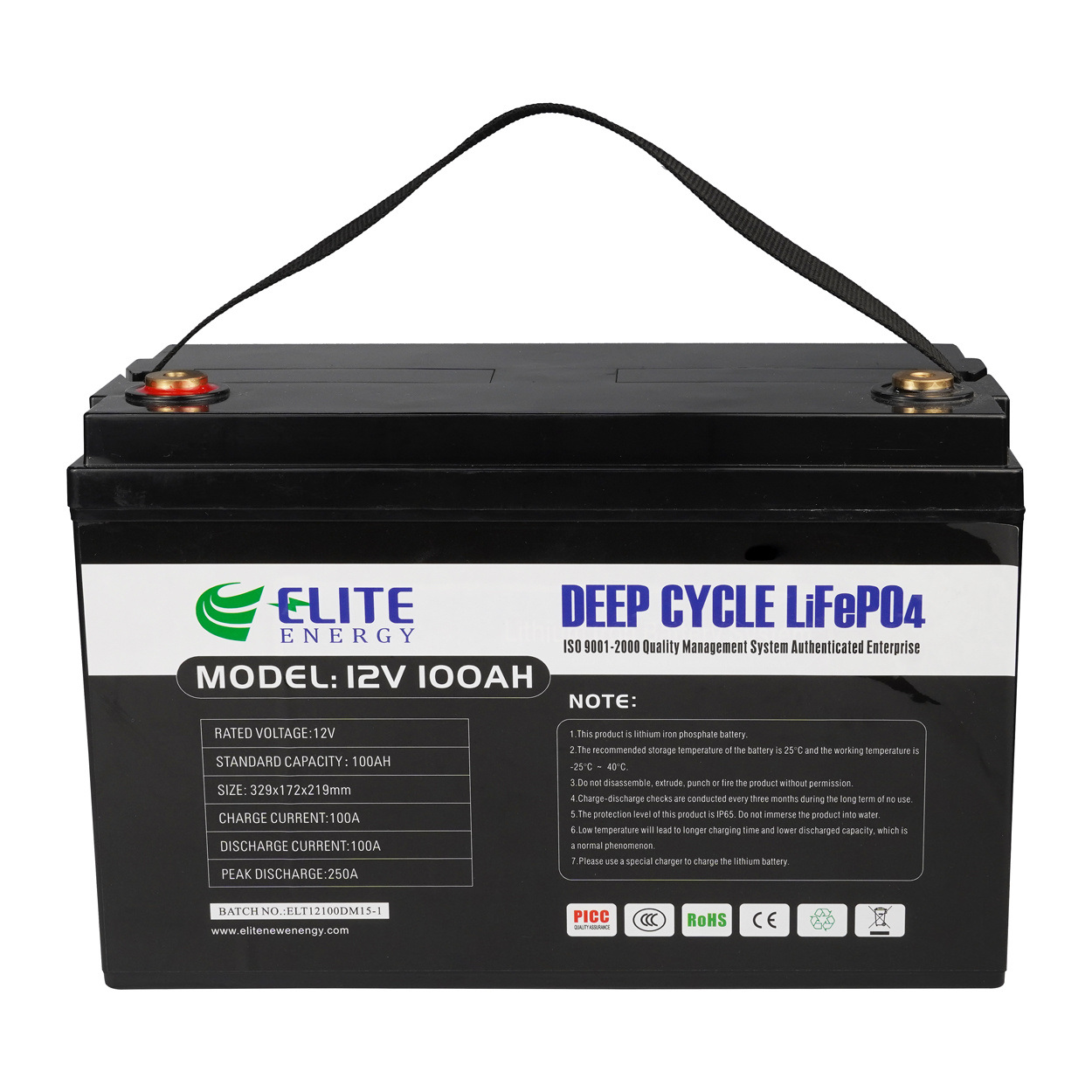

Battery Image
Function of LiFePO4 Battery
Self-heated Function
To relieve winter range anxiety in some freezing environment, the BMS can bring with self heating function. Resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥10°C. Can improve battery charge / discharge performance.
Bluetooth Function
LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
F&Q
Q1.Can you ship battery out of China?
R1:Yes,we can ship to any country out of China,you can tell us your
address to check.
Q2.How do you ship the LiFePo4 battery packs?
R2:For sample order or small battery packs,we can ship by express
through Fedex,UPS,TNT etc.If whole parcel over 100KG,can ship by
air or by sea,sea shipping is more cheaper.
Customer can tell your nearest airport name and sea port name for
us to check the best option for you.
Q3.Can we put different LiFePO4 battery pack in parallel or series by ourself?
R3:Yes. The battery can be put in parallel or series by customers.
But there are few tips we need to pay attention:
1)Make sure the voltage of each battery are same before put in
parallel. If they are not same, charge them to the same rate.
2)Don't not put discharged battery and undischarged battery in
parallel. This may reduce the capacity of the whole battery pack.
3)Advise us the target capacity of the whole pack if you would like
to put them in series. We will choose the suitable BMS for each
battery.
4)If you are not professional in parallel and series batteries,
please don't handle the battery by yourself. It may cause danger
and hurt the cycle life of battery.
Q4.Can we put different LiFePO4 battery pack in series by ourselves?
R4:You can buy big voltage directly from us.We suggest do not make
them in series by yourself if you do not have experience,this will
hurt the cycle life of the pack.
Q5.Does your battery pack include BMS?Can we use it for car?
R5:Yes,our battery pack include BMS,you can use it for low speed
car only or aux. power for standard car.Do not use it for standard
car directly,that will need more complex design BMS for the pack.
Q6.What is your warranty?
R6:We offer 36 months warranty for lithium ion battery pack and 2
years warranty for all our battery pack.we ensure at least 2000
cycle life for the LiFePO4 battery pack,which means,after 2000@80%
DOD,there will still around 60% capacityt left.You can use it for
at least 5 years for normal 1 time charge and discharge everyday.
