ELITE NEW ENERGY MAKES GREENER LIFE
5 Years
| Ask Lasest Price | |
| Brand Name : | Elite |
| Model Number : | 12V 50Ah |
| Certification : | CE, UL, MSDS, UN38.3, CB |
| Price : | $99.99-$199.99/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability : | 10000 PCS/Month |
| Delivery Time : | 30 Days |
Advantages
* High energy density
* High voltage
* No pollution
* Long cycle life
* No memory effect
* Low self-discharge rate
* High-rate charge / discharge
Main Applications OF Lithium Rechargeable Battery:
Battery Cell Parameters:
| Cell type | 32700 |
| Nominal voltage(V) | 3.2 |
| Nominal capacity(Ah) | 6Ah |
| Internal resistance(mΩ) | ≤0.4 |
| Continuous discharge current(C) | 1 |
| Max. instantaneous discharge current 10S(C) | 3 |
| Standard charge current(C) | 0.5 |
| Fast charge current(C) | 1 |
| Charging temperature(ºC) | 0~45 |
| Discharge temperature(ºC) | -20~55 |
| Storage humidity range(RH) | ≤85% |
Battery System Parameters:
| Nominal voltage(V) | 12.8 | 4S |
| Nominal capacity(Ah) | 50 | 9P |
| Working voltage(V) | 10~14.6 | |
| Charging time(h) | 3~6 | |
| Energy capacity of battery(Wh) | 1280 | 25°C (100% DOD @ 1C rate) |
| 960 | -20°C (100% DOD @ 1C rate) | |
| Charging current(A) | 50 | |
| Peak discharge current(A) | 150 | |
| Rated discharge current(A) | 50 | |
| Charge cut-off voltage(V) | 14.6 | |
| Discharge cut-off voltage(V) | 10 | |
| Self-discharge | ≤3% | monthly at 25ºC |
| Working temperature(ºC) | -20~55 | |
| Storage Temperature(ºC) | 0~45 | |
| Cycle life(times) | ≥2000 | |
| Battery Pack Weight(kg) | ≤8 | |
| Dimensions(mm) | 198*166*170 | ABS Plastic Case |
BMS Protection
| Single cell overcharge protection | √ |
| Single cell overdischarge protection | √ |
| Charge overcurrent protection | √ |
| Discharge overcurrent protection | √ |
| Short circuit protection | √ |
| Charging high temperature protection | √ |
| Charging high temperature recovery | √ |
| Charging low temperature protection | √ |
| Charging low temperature recovery | √ |
| Discharging high temperature protection | √ |
| Discharging high temperature recovery | √ |
| Discharging low temperature protection | √ |
| Discharging low temperature recovery | √ |

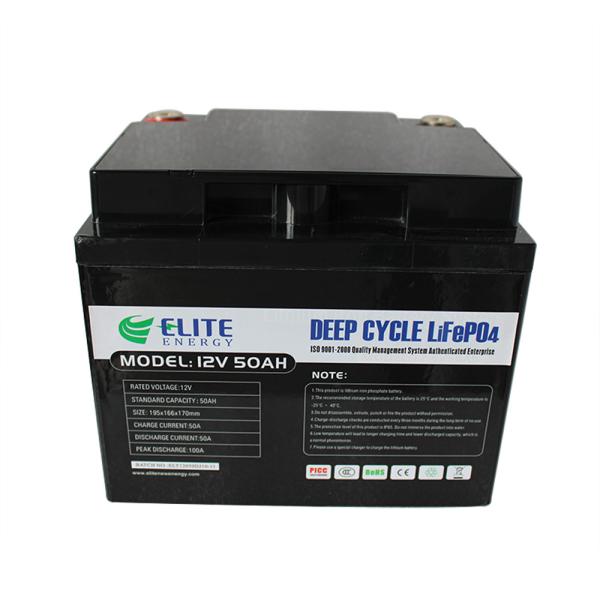

Battery Image
Function of LiFePO4 Battery
Self-heated Function
To relieve winter range anxiety in some freezing environment, the BMS can bring with self heating function. Resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥10°C. Can improve battery charge / discharge performance.
Bluetooth Function
LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
· Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
· During transportation,50% SOC must be kept to ensure that short circuit, appearance of liquid in the battery or immersion of battery in liquid never occur.
· Battery should be kept at -20℃～45℃ in warehouse where it’s dry, clean and well-ventilated.
· During loading of battery, attention must be paid against dropping, turning over and serious stacking.
In order to prevent the battery leaking, getting hot and exploding, please pay attention to preventing measure as following:
Warning!
· Never throw the battery into water, keep it under dry, shady and cool circumstance when not use.
· Never upside down the positive and negative.
· Never connect the positive and negative of battery with metal.
· Never ship or store the battery together with metal
· Never knock, throw or trample the battery.
· Never cut through the battery with nail or other edge tool.
Tips!
· Never use or keep the battery under the high temperature. Otherwise it will cause battery heat, get into fire or lose some function and reduce the life. The proposed temperature for long-term storage is 10-45℃.
· Never throw the battery into fire or heating machine to avoid fire, explosion and environment pollution; scrap battery should be returned to the supplier and handled by the recycle station.
· Never use the battery under strong static and strong magnetic field, otherwise it will destroy the protecting device.
· If battery leaked, the electrolyte get into eyes, please don’t knead, please wash eyes by water and send to hospital. Otherwise it will hurt eyes.
· If battery emit peculiar smell, heating, distortion or appear any unconventionality during using, storage or charging process, please take it out from device or charge and stop using.
· Never cut the battery in socket directly; please use the stated charger when charging.
· Check the voltage of battery and relevant connectors before using the battery. It can’t be used until everything turns out to be normal.
· Prior to charging, fully check the insulativity, physical condition and ageing status, since breakage and ageing are never allowed; the pack voltage must not be less than the cutoff voltage, if not, it’s abnormal and that battery needs to be labeled. The user should contact our Customer Service Dept and it can’t be charged until repaired by our staff.
· The battery should be stored in full SOC. It needs to be charged once if out of use for as long as half a year.
· Clean the dirty electrode, if any, with a clean dry cloth, or poor contact or operation failure may occur.
|
|
