ELITE NEW ENERGY MAKES GREENER LIFE
5 Years
| Ask Lasest Price | |
| Brand Name : | Elite Battery |
| Model Number : | 12V 200Ah |
| Certification : | CE, UL, MSDS, UN38.3, MSDS |
| Price : | $159.99-$599.99/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability : | 10000 PCS/Month |
| Delivery Time : | 30 Days |

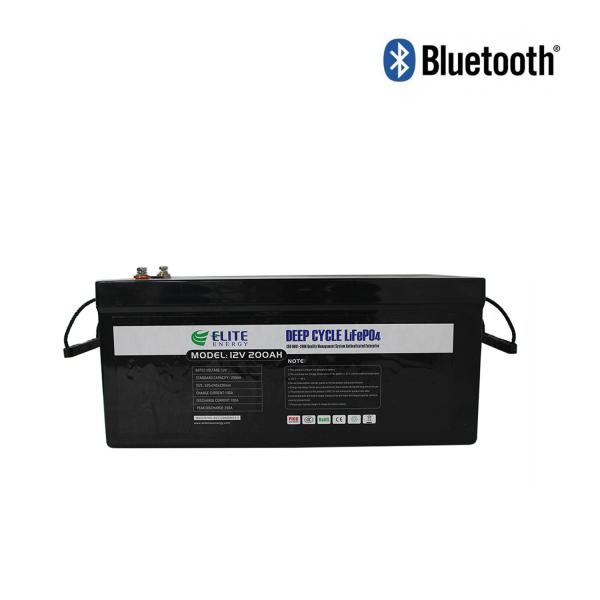

Safety Green 12V 200Ah LiFePO4 Battery 12.8V Lithium Battery
12V Green LiFePO4 Battery 12.8V Safety Lithium Battery 12V 200Ah Li-ion Battery
Lithium Ion Battery Feature
#1 Deep cycle and rechargeable lithium battery;
#2 Stability performance with charge and discharge plaform;
#3 Enviorment friendly by using green material iron, graphite, and
phosphate;
#4 Good performance at high temperature and high temperature
resistance;
#5 No memory effect, highly efficient charge anytime, no reduction
of capacity
#6 Bluetooth function and heated function can be added;
#7 Support series and parallel connection;
#8 Safest Li-ion battery, CE UL approved, built-in protection circuit board (BMS), no fire, no explosion
Lithium Ion Battery Specification
Model Type | ELT-LFP-12V-200Ah |
Energy38 | 2560.Wh |
Nominal Voltage | 12.8V |
Nominal Capacity | 200Ah |
Recommend Charge Current | 20A |
Max. Charge Current | 100A |
Max. Continuous Discharge Current | 100A |
Max. Pulse Current | 250A(10S) |
Internal Resistance | ≤10mΩ |
Cycle Life | >3000 cycles@1C 100% DOD |
Months Self Discharge | <3% |
Efficiency of Charge | 100%@0.5C |
Efficiency of Discharge | 96-99% @1C |
Charge Cut-off Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 58.4V charge current to 0.02C(CC/CV) |
Discharge Cut-off Voltage | 10V |
Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
Cell&Method | 4S |
Package | Plsatic ABS Case |
Dimension | 525*220*269mm |
Weight(lbs./kg.) | 25kg |
Lithium Ion Battery Description
Advantage of Lithium Ion Battery
#1 Higher power density while compared with lead acid battery
#2 More safety and green material while compared with lead acid battery
#3 1/2 lightweight while compared with lead acid battery
#4 5 cycle times longer while compared with lead acid battery
#5 HIgher chagrge and discharge rate while compared with lead acid battery
#6 No memory effect and highly efficient charge anytime while compared with lead acid battery
Lithium Ion Battery Application
1. Large-scale electric vehicles: Electric bus, electric car,
E-Tour Car...
2. Light electric car: E-bike, electric scooter, e-motor, electric
golf car, forklift, cleanness car, electric wheelchairs...
3. E-tool: Electric drill, electric saw, lawn mower...
4. RV, Caravan, Marine, Fishing Boat, Yacht...
5. Solar and wind power generation energy storage devices...
6. Small medical equipment and portable equipment...
7. Home on/off-Grid Applications...
8. Backup battery, UPS...
Payment & Shipping
Payment: Accept T/T; L/C/ Paypal/ Western Union
Shipping: By air, by sea, by express, railway transportation and so on.
|
|
