| Brand Name : | Elite |
| Model Number : | 51.2V 100Ah |
| Certification : | CE, UL, MSDS, UN38.3, MSDS |
| Price : | $59.99-$999.99/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability : | 10000 PCS/Month |
| Delivery Time : | 20-30 Days |

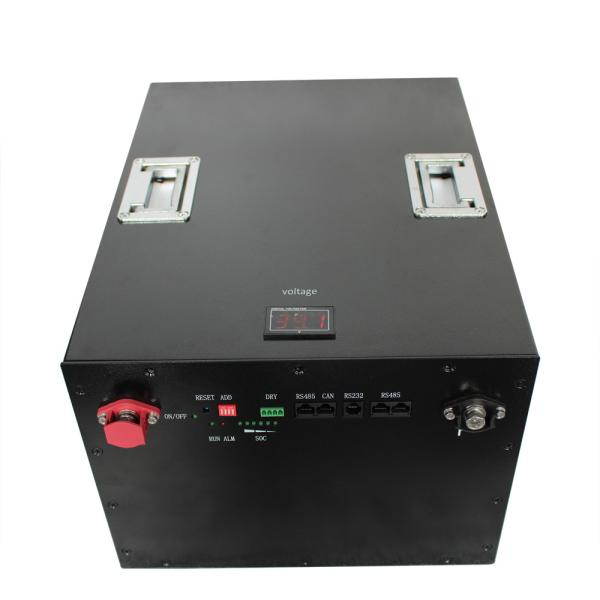

5120Wh 100Ah 48V LiFePO4 Battery RV Caravan Lithium Ion Battery Pack
48V 100Ah Lithium Ion Battery Pack Li-ion Battery For RV/Caravan
Lithium Ion Battery Pack Specification
| Electrical Characteristics | Nominal Voltage | 51.2 V |
| Nominal Capacity | 100Ah | |
| Energy | 5120Wh | |
| Internal Resistance | ≤10mΩ | |
| Cycle Life | >4000 cycles@1C 100% DOD | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100%@0.5C | |
| Efficiency of Discharge | 96-99% @1C | |
| Standard Charge | Charge Cut-off Voltage | 58.4±0.2V |
| Charge Mode | 0.2C to 58.4V, then 58.4V charge current to 0.02C(CC/CV) | |
| Recommend Charge Current | 20-50A | |
| Max. Charge Current | 100A | |
| Standard Discharge | Max. Continuous Discharge Current | 100A |
| Max. Pulse Current | 100A(10S) | |
| Discharge Cut-off Voltage | 40V | |
| Environmental | Charge Temperature | 0℃ to 45℃(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4F to 140F)@60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 40℃(32F to 104F)@60±25% Relative Humidity | |
| Water Dust Resistance | IP54 | |
| Mechanical | Cell&Method | 4S |
| Package | Metal case | |
| Dimensions(in./mm.) | 483*500*177mm | |
| Weight(lbs./kg.) | 50kg | |
| Terminal | M8 | |
| Display screen | Optional | |
| Bluetooth | Optional |
Introduction of Lithium Ion Battery Pack
Elite LiFePO4 battery pack is ideal replacements for traditional lead acidbattery battery due to its excellent performance.
Elite provide OEM/ODM , wide voltage battery packs for 12V, 24V, 48V, 72V with 10Ah ,20Ah, 30Ah, 50Ah, 60Ah, 75Ah, 100Ah, 120Ah, 150Ah ,200Ah, 300Ah etc., The Lithium battery are widely use on different applications, such as medical equipment, emergency lighting, UPS/EPS, security System, electric vehicles, solar system, home energy storage, etc.
Lithium Ion Battery Pack Feature
❖ No memory effect ,excellent deep discharge recovery performance.
❖ Small size, light weight , high energy density, easy to install.
❖ Supports paralleling or series connection to increased voltage or capacity..
❖ Equip with control APP to monitor the unit cell and battery pack.
❖ Integrated built-in BMS own over voltage, current and temperature protection
❖ Internal design can be modified as per users demand.
Shipping
The bulk order's production time is about 30 working days and the shipping time is depend on the shipping methods
Shipping: Ship by Express/Air/Sea are optional.
Packing: Carton/Wooden Case
Attention
♦ The battery pack should be stored in 40%～60% state-of-charge.
♦ Charge the battery for 50% capacity firstly when it needs to be stored for a long time and remember to charge every 3 months.
♦ Battery pack and the charger should be stored in clean, dry and ventilating place, keep the battery away from fire and heat source.
♦ Battery pack and charger should avoid severe vibrating, impacting , extrusion, and direct light and rain;
♦ In the process of maintenance, don't assemble and disassemble the battery without permission.
|
|
