Deep Cycle 200Ah Forklift 24V LiFePO4 Battery With Capacity Display
Deep Cycle 24V 200ah Forklift LiFePO4 Battery with Capacity Display
Lithium Iron Phosphate LiFePO4 Battery for Power Storage/Golf Cart/Forklift
Deep Cycle LiFePO4 Battery Characteristics
• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
• Integrated battery management System (BMS)
• Ultra-long cycle life • Light weight & compact
• Water & dust resistant
• Highly energy density
• Drop-in lead acid replacement
• Environment friendly
• Bluetooth App is optional
Lifepo4 Forklift Battery Parameters
| Model | ELT-24200/8S1P |
| Battery cell | 3.2V 100Ah prismatic LifePO4 cell |
| Case dimension | 570*150*450mm(L*W*H) |
| Nominal voltage | 25.6V |
| Nominal capacity | 200Ah |
| Battery configuration | 8S1P |
| Internal resistance | ≤220mΩ |
| End of charge voltage | 29.2V |
| End of charge current | 100mA |
| End of discharge voltage | 20V |
| Standard charge current | 20A |
| Max charge current | 100A |
| Standard discharge current | 100A |
| Max discharge current | 200A |
| Max pulse discharge current | 400A/3S |
| Charge method | CC/CV |
| Case material | metal |
| Net weight | 53KG |
| Charge temperature | 0~45ºC |
| Discharge temperature | -10~55ºC |
| Storage temperature | -10~45ºC |
| Lifecycle | 2000 times 85% DOD |
| Warranty | 3 years |
| LCD display | can show the battery voltage and capacity |
| BMS protection | over-charge,over-discharge,over-current,short circuit and balance function |

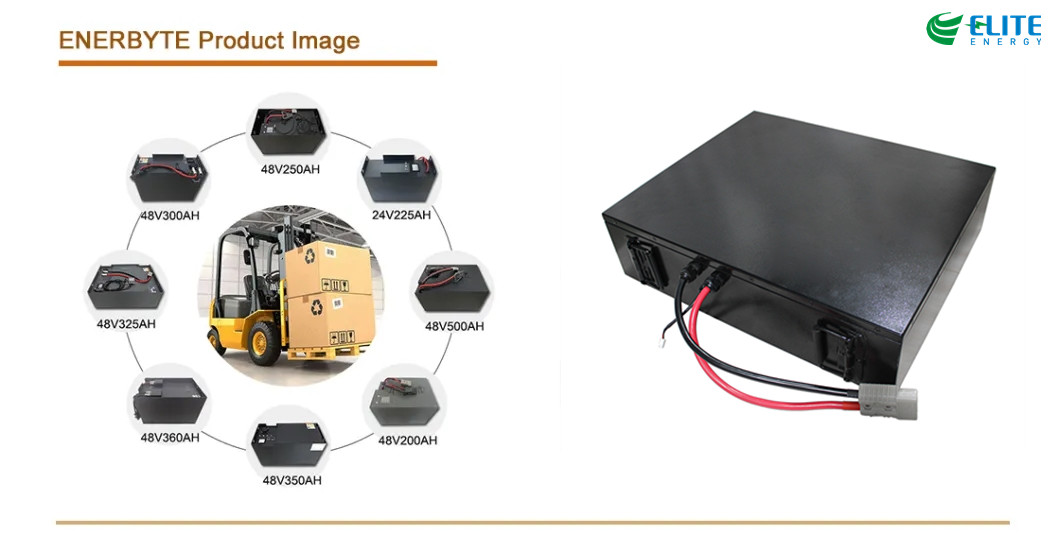

Lifepo4 Forklift Battery Appearance
Deep Cycle LiFePO4 Battery Performance and Test Conditions
1. Standard test conditions
Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.
2. Standard Charge/Discharge
Standard Charge: 0.2C
Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 14.6V. The battery shall then be charged at constant voltage of 14.6 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05CA. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.
Standard Discharge: 0.2C
Battery shall be discharged at a constant current of 0.2C to 10V @ 20º ± 5C
Elite OEM/ODM Service
In the lithium-ion battery industry, different customers may have
different requirements on their batteries, because of their
different applications. Besides, most customers would prefer to
have the batteries with their own brand. In Elite, with the
professional engineer team, we are able and willing to help our
customers making their ideas come true. Please feel free to contact
us whether you happen to be looking for a lithium battery solution
or you are just looking for an alternative supplier for back up.
Excellent Engineers
Elite provides customize solutions to meet your request in every
detail. Our engineer team is able to leverage their experience in
technology, product, industry to rapidly design the battery pack to
ensure a proper solution is figured.
What Specification? Is Customizable?
When you are going to customize the battery, there're 6 main
specifications that can be tailored to your needs:
• Voltage • Charge Current
• Capacity • Discharge Current
• Dimension • SOC Indicator
No matter you are looking for a specific size or more energy output
for your equipment, Elite is able to provide you a good solution.
Our teams are ready to help you, please send your request to talk
in detail.
Why Choose US:
1. We offer one-stop power solutions, which saves design time and cost
for customer:
-- Pack design / External Case design / BMS design
2. Strict quality control system which enhances customers'
competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC
3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution
4. Experienced R&D team, be customer's professional power
solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement
|
|
